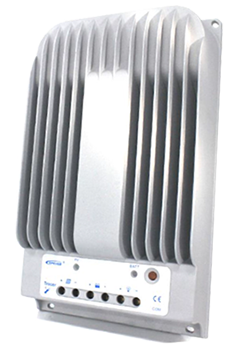

Models
- Tracer1215BN, 10A, 12/24V auto work
- Tracer2215BN, 20A,12/24V auto work
- Tracer3215BN, 30A,12/24V auto work
- Tracer4215BN, 40A,12/24V auto work
Top 3 Features
Download copy of Table Spec
Technical Specifications
| Model |
Tracer1215BN |
Tracer2215BN |
Tracer3215BN |
Tracer4215BN |
| Nominal system voltage |
12/24Vauto work |
| Rated battery current |
10A |
20A |
30A |
40A |
| Rated load current |
10A |
20A |
30A |
40A |
| Max. PV open circuit voltage |
150V at minimum operating environment temperature
138V at 25℃environment temperature |
MPP Voltage range |
Battery voltage+2V～108V |
| Max. PV input power |
130W (12V) |
260W (12V) |
390W (12V) |
520W (12V) |
| Max. PV input power |
260W (24V) |
520W (24V) |
780W (24V) |
1040W (24V) |
Equalize charging voltage |
Sealed: 14.6V, Flooded: 14.8V, USER: 9~17V |
Boost charging voltage |
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, USER: 9~17V |
Float charging voltage |
Gel /Sealed /Flooded: 13.8V, USER: 9~17V |
Low voltage reconnect voltage |
Gel /Sealed /Flooded: 12.6V, USER: 9~17V |
Low voltage disconnect voltage |
Gel /Sealed /Flooded: 11.1V, USER: 9~17V |
Self-consumption |
≤60mA(12V) ≤30mA(24V) |
Grounding |
Common negative |
Temp. compensation |
-3mV/℃/2V |
Communication port |
RS485 / RJ45 interface |
Mechanical Specifications
| Mechanical |
Tracer1215BN |
Tracer2215BN |
Tracer3215BN |
Tracer4215BN |
| Overall dimension |
196x118x36mm |
217x143x56mm |
281x160x60mm |
303x183x64mm |
| Terminal |
4mm2 |
10mm2 |
16mm2 |
25mm2 |
| Net weight |
0.9kg |
1.5kg |
2.3kg |
2.9kg |
| Enclosure |
IP30 |
Environmental Specifications
| Working temperature |
-35℃～+55℃ |
| Storage temperature |
-35℃～+80℃ |
| Humidity |
≤95% N.C. |
