100 Watt Solar Panel

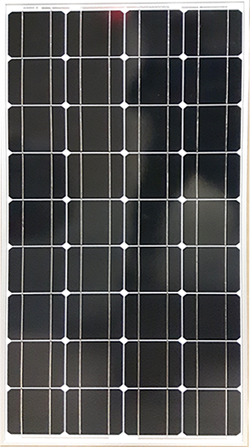

100 Watt rigid solar panel
  • Parameters are rated at Standard Test Conditions (Irradiance of 1000 W/m², AM 1.5G, cell temperature 25°C). NOCT is measured at 800 W/m², 20 °C ambient, and 1 m/s windspeed.
  • Specifications are subject to change without notice. Microgreen reserves right of final interpretation and revision on this datasheet.

Warranty

  • Free from defects in materials and workmanship for 5 years
  • 90% power output over 10 years, 80% power output over 25 years

Technical Specs

Monocrystalline Specifications - Model MG-PV-100M2
Cell Type Mono
Cell Number 36 (4x9)
Maximum Power (Pmax) 100 W
Open Circuit Voltage (Voc) 21.3 V
Short Circuit Current (Isc) 6.07 A
Rated Voltage (Vmp) 17.8 V
Rated Current (Imp) 5.62 A
Maximum System Voltae DC 1000 V
Voltage Temperature Efficiency -0.33%/oC
Current Temperature Efficiency +0.05%/oC
Power Temperature Efficiency -0.23%/oC
Series Fuse 15 A
Fire Rating Class C
Max Load 45 lb/ft2
Operating Termperature -40 to +85oC
Dimension (mm) 1195x535x35
Weight (kg) 7.2
Connector MC4

Downloads

Spec Sheet: 35, 75, 100 Watt (.xlsx file format)

Other power outputs available:
