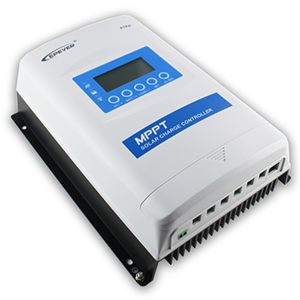

40A MPPT charge controller

Charge Controller

XTRA-N Series - 30% higher efficient charging than conventional PWM charge controller.


Its advanced smart algorithm

  • Protects to ensure a stable system even at exceeded rated PV power and over temperature conditions.
  • Protects from over charge and over discharge
  • Provides reliability under different application requirements.
  • Incorporates a 3-stage charging which prolongs the lifespan of battery and significantly improve the system performance.
  • Ensures sustainability and durability of the off-grid solar system.


Applications


Features

  • Advanced MPPT technology & ultra-fast tracking speed is up to 99.5 % guaranteed
  • Maximum DC/DC transfer eciency is as high as 98 %,full load transfer eciency is up to 97.4 %
  • Wide MPP operating voltage rangeLow temperature protection and self activate function for lithium battery charging
  • Limit charging power & current over rated range
  • Real-time energy statistics functionMultiple load work modes
  • Comprehensive electronic protection
  • Compatible with lead acid and lithium-ion batteries
  • Over temperature protection and power degrading in higher temperature
  • Optional LCD display units (XDB1/XDS1/XDS2) and accessories
  • Over temperature protection and power degrading in higher temperature
  • Optional LCD display units (XDB1/XDS1/XDS2) and accessories
  • High quality and low failure rate components of ST or IR to ensure service life
  • Isolated RS485 communication port with 5V/200mA protected output, with standard Modbus protocol
  • Monitor and set the parameters via APP or PC software
  • Dustproof and waterproof design with IP32② protection class
  • CE certication(LVD IEC62109,EMC EN3/1-6-61000)

Tech Specs

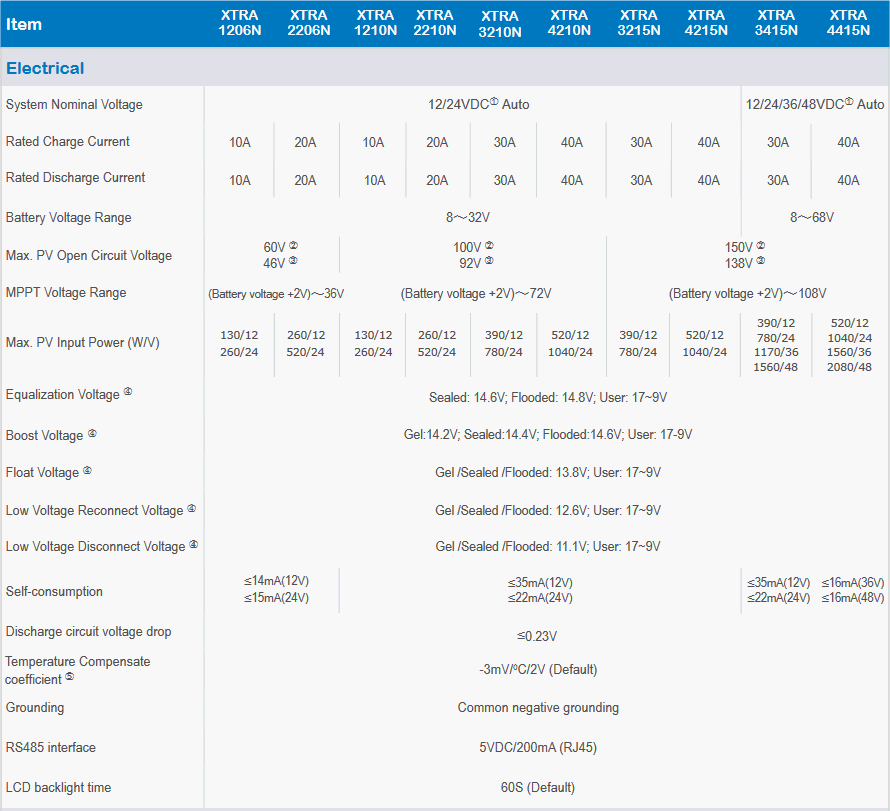

MPPT 40A technical specs

Downloads

PDF downloads   Data Sheet

PDF downloads   User Manual
